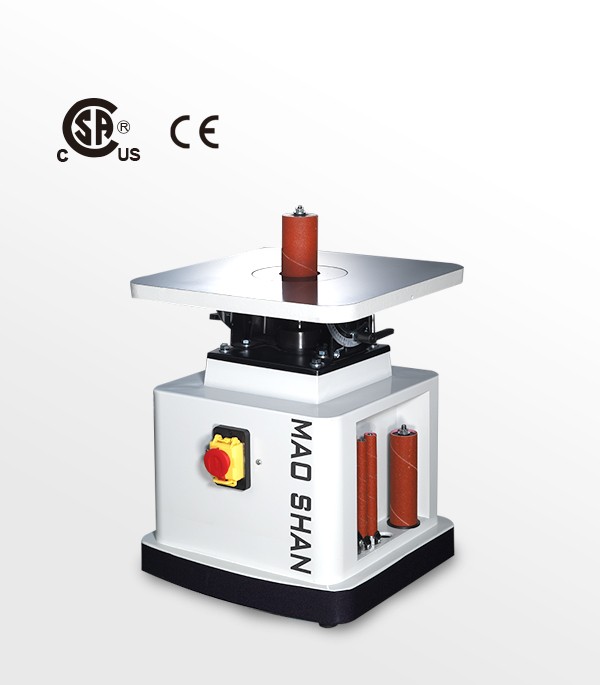

OVS-TG
Spindle Sander
easy spindle interchange
FEATURES
- 370x370mm Cast iron table, rib reinforced for maximum stability. The table surface is precision ground.
- Heavy guage steel frame.
- Rubber drum can be fitted on both ends for full use of the entire spindle.
- The high spindle speed of 1720RPM combined with the oscillating fine finishing effects.
- Easily interchangedable spindle.
- Tilting table for bevelled parts sanding.
DESCRIPTION
EASY SPINDLE INTERCHANGE
This machine accepts spindle diameters of 1/4", 1/2" and 3/4" for fitting with various diameters of rubber drum.
Spindle change is easily made using the wrench supplied.
TILTING TABLE
The table may be tilted front downwards up to a maximum of 45 degrees to allow the sanding of bevelled parts.
A graduated scale is attached for accurate reading of the degree of tilt.
DUST HOOD
A plastic dust hood is supplied under the table for connection to a dust collector.
The dust hood outlet diameter is 2".
SPECIFICATION
- Oscillations per minute 29
- Oscillations stroke 15/16" (24 mm)
- Sanding spindle diameter (Sandard) 1/4", 1/2", 5/8", 1-1/2", 2"
- Sanding spindle diameter (Optional) 3"
- Spindle speed 1720 rpm
- Table area 370 x 370 mm
- Table tilt 45 degrees front, downward
- Table height from floor 465 mm
- Motor 1/2 HP
SIZE
- Dust hood outlet diameter 2"
- Net weight 30.3 kgs
- Gross weight 37.7 kgs
- Machine dimensions (LxWxH) 370 x 370 x 480
- Packing dimensions (LxWxH) 435 x 435 x 525
